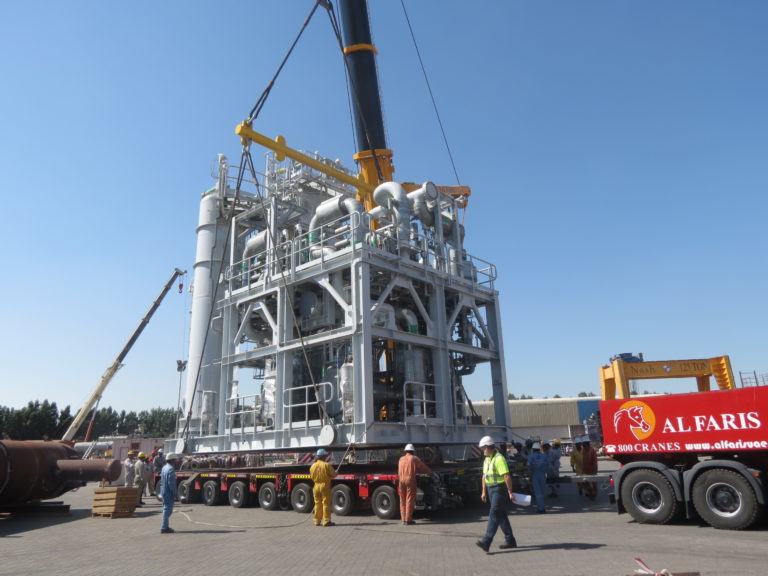

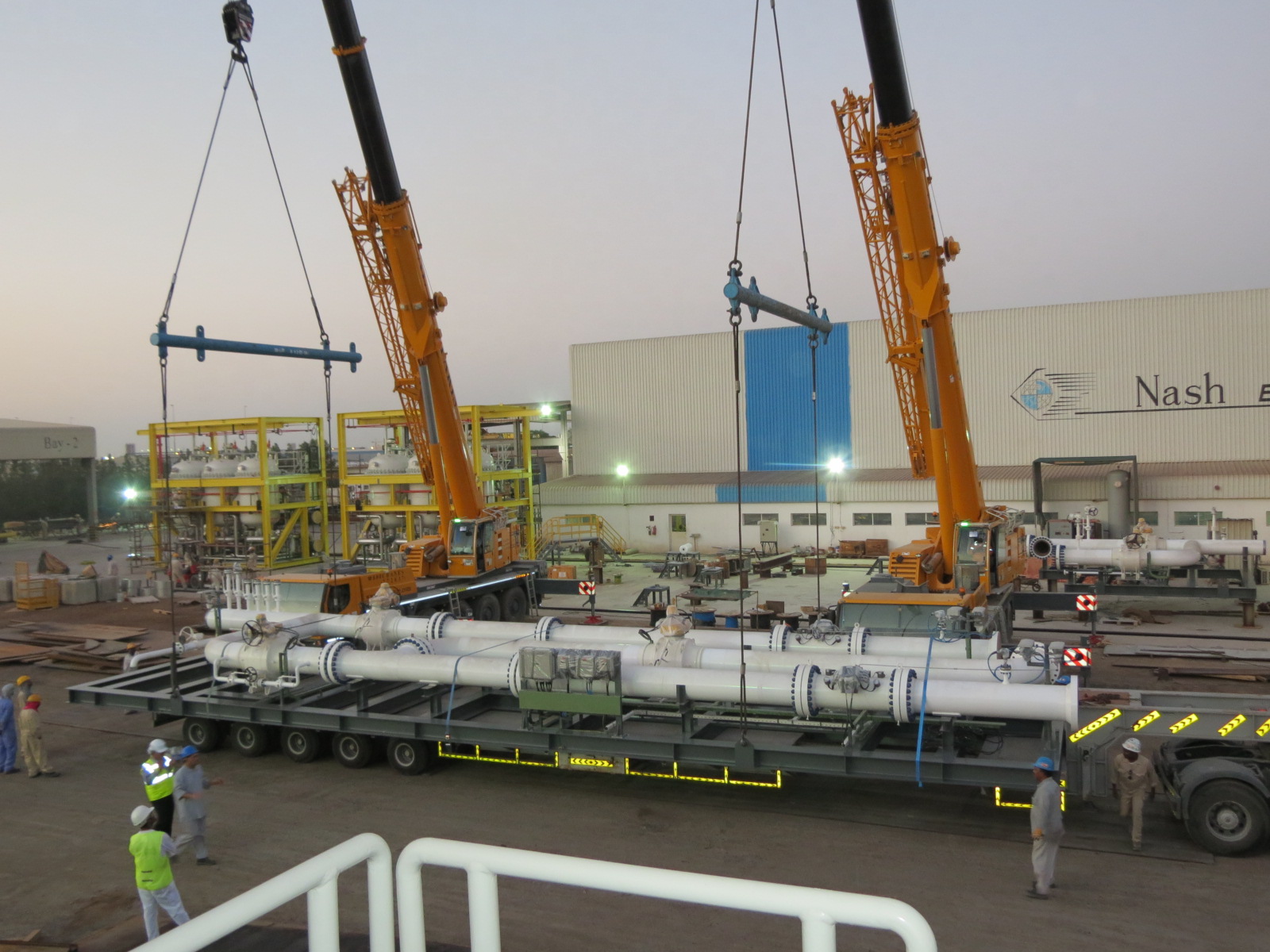

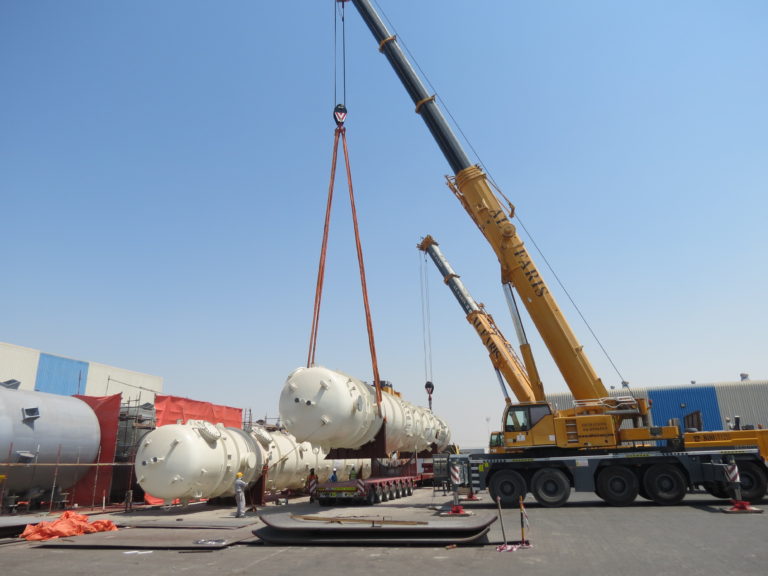

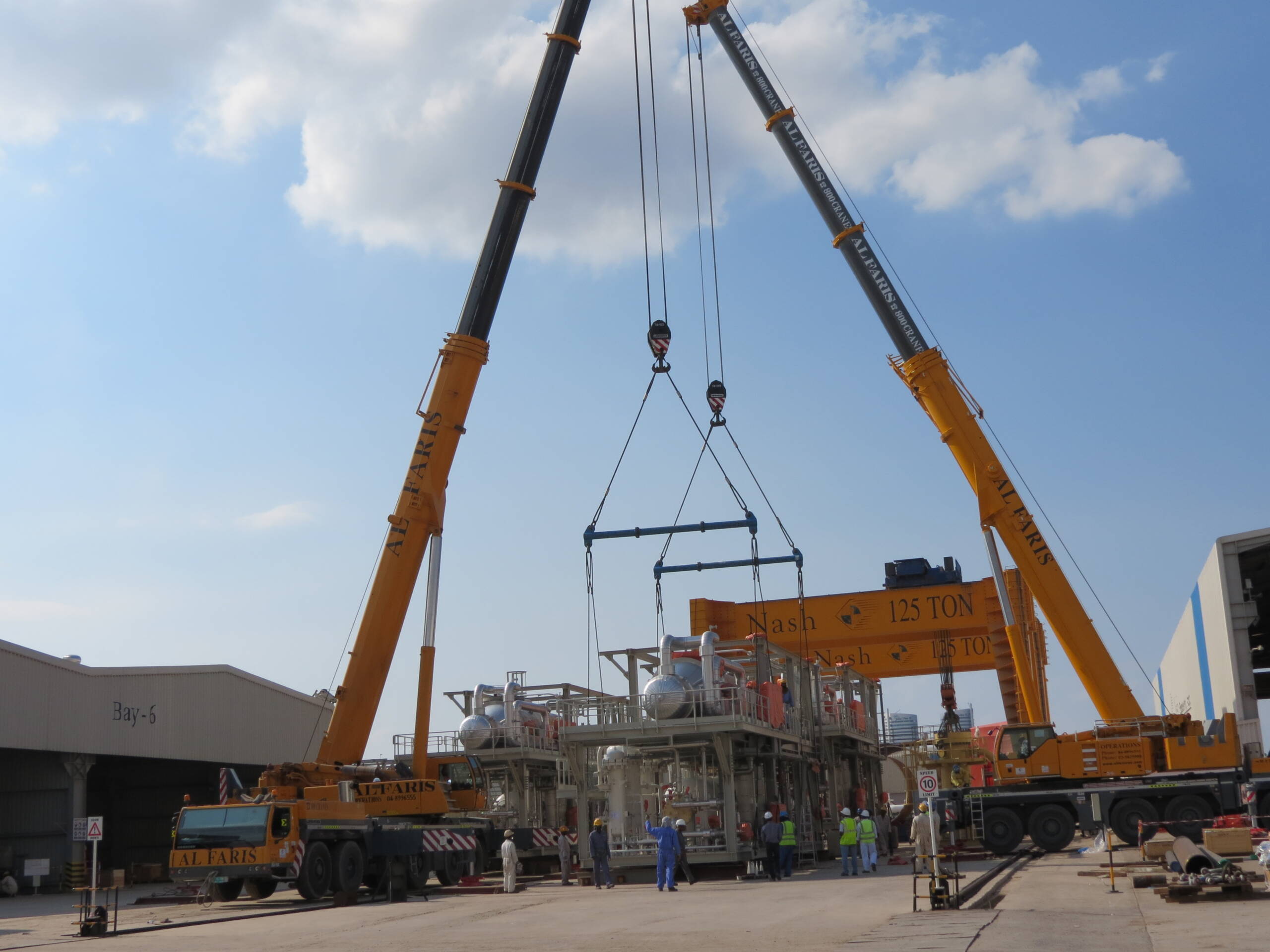

NASH, has developed the expertise to build complete Skid Assembly Packages, which includes Fabrication of Vessels, Heat Exchangers, Structures, Piping Spools & Supports and assembly of these along with the E & I, Valves, Pumps, Blowers, Burners etc.

We have the in-house capability to carry out the complete Mechanical design & Engineering of the skids comprising of structural, Vessels & Exchangers, Piping Isometrics, Surge Analysis, 3D modeling of the skids using CADworx etc.

Fabrication & Assembly Yard Details

Jebel Ali free Zone South

Yard details : Fabrication Yard – 1
Location Jebel Ali Free Zone
Region in UAE Dubai
Total Area 50,000 Sq. Mtr
No. of Bays 8
Surface Preparation Facilities area 2,350 Sq. Mtr
Storage Area 24,600 Sq. Mtr

Dubai U.A.E. Dubai Industrial City, Dubai, UAE.

Yard details : Fabrication Yard – 2
Location Dubai Industrial City
Region in UAE Dubai
Total Area 32,000 Sq. Mtr
No. of Bays 5
Surface Preparation Facilities area 1,600 Sq. Mtr
Storage Area 18,000 Sq. Mtr

Mussafah Industrial area , ICAD City

Yard details : Fabrication Yard – 3
Location Mussafah Industrial area , ICAD City
Region in UAE Abu Dhabi
Total Area 41,500 Sq. Mtr
No. of Bays 4
Surface Preparation Facilities area 1,600 Sq. Mtr
Storage Area 20,600 Sq. Mtr
